Visual Perception-Based Assistive Mobile Robot System for Manipulation Tasks

ICRA 2023 Workshop

ICRA 2023 Workshop — Emerging Paradigms for Assistive Robotic Manipulation: From Research Labs to the Real World

Hye-Jung Yoon · Juno Kim · Yesol Park · Byoung-Tak Zhang1,2

1Interdisciplinary Program in AI, Seoul National University  ·  2AI Institute, Seoul National University

Paper Workshop BibTeX

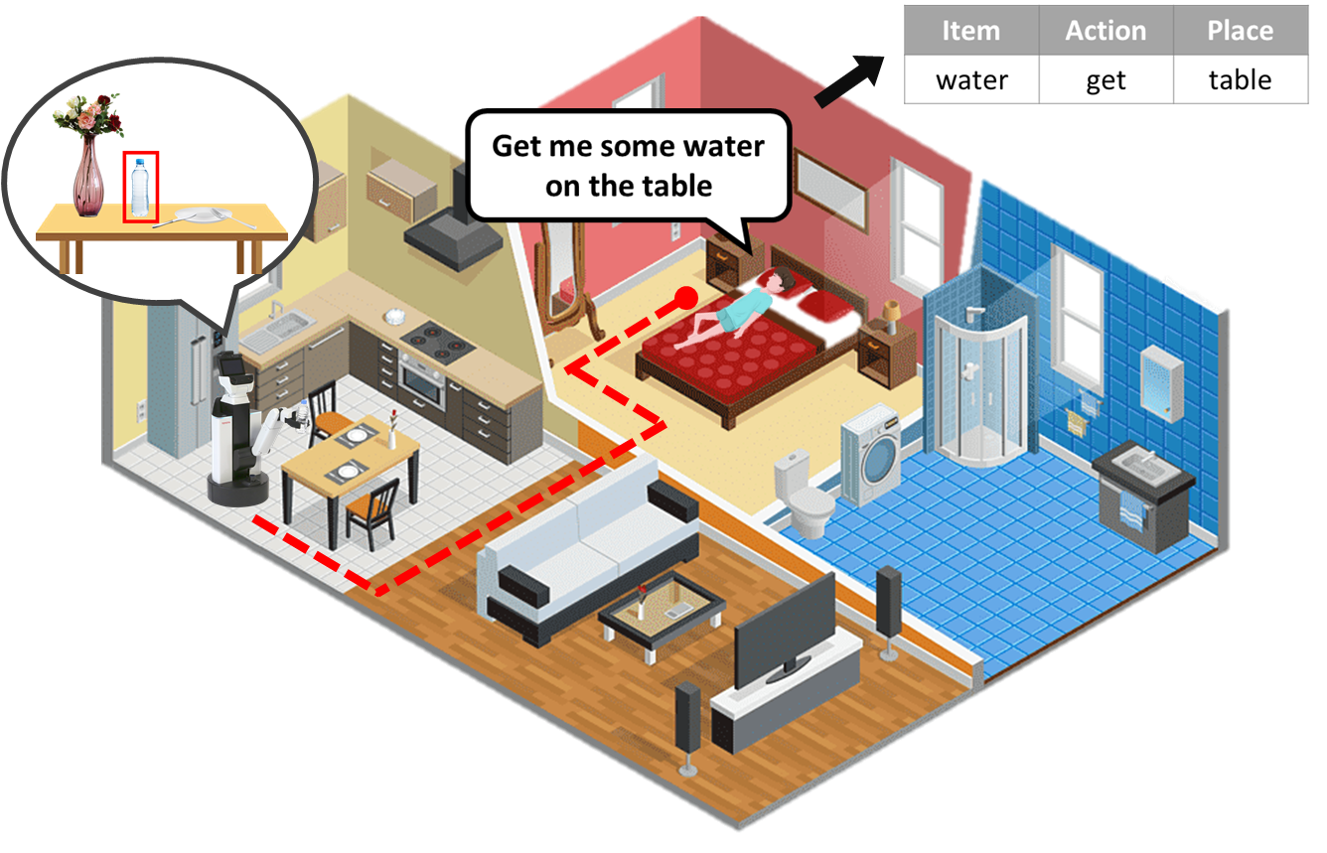

Illustration of the proposed system: a mobile robot in a house is given the instruction 'Get me some water on the table,' determines the item, action, and place from the command, and navigates to complete the task.

A visual perception-based assistive mobile robot system that performs both user-directive and robot-directive manipulation tasks — understanding natural-language instructions or autonomously perceiving user needs to help people with limited mobility.

Abstract

Mobile robots have the potential to assist humans in grasping and manipulating tasks. However, making a reliable and efficient mobile robot system is challenging due to the complexity of dynamic environments. In this paper, we present a visual perception-based mobile robot system assisting individuals lacking manipulation skills. Our system designed to perform the user-directive and robot-directive tasks and utilizes Toyota's Human-Support-Robot (HSR) along with the unifiedIO model for visual interpretation techniques. Furthermore, we conducted experiments to demonstrate the potential of the HSR with visual interpretation for real-world applications in household settings. Our approach enhances the effectiveness of the mobile robot system and extends the range of tasks that can be accomplished.

Method

The system performs manipulation tasks through two task types, both executed on Toyota's Human Support Robot (HSR) using the unifiedIO model for visual grounding, image captioning, and VQA:

  1. User-directive tasks — the system parses a natural-language instruction into three components: item, action, and place. It then uses visual grounding to detect and locate the target item via the robot's head camera before executing the action.
  2. Robot-directive tasks — the robot autonomously perceives a specific user event through image captioning and uses VQA to determine whether the user needs assistance. If so, it asks the user whether they'd like help, then executes the confirmed task the same way as a user-directive task.

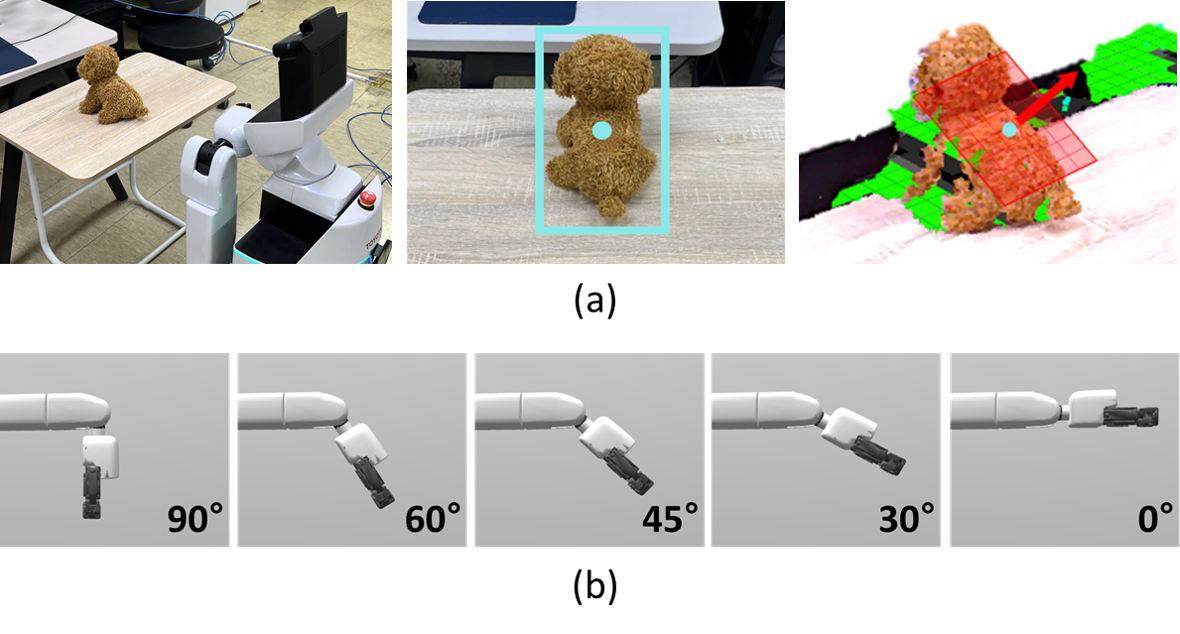

Procedure for grasping the target object: (a) the robot captures the angle of the object's surface at various angles, (b) it selects the corresponding pre-defined grasp pose optimized for that angle.
Procedure for grasping the target object. The robot first captures the angle of the object's surface (a), then selects the corresponding pre-defined grasp pose optimized for the object (b).

To execute the grasp itself, the robot obtains point cloud data of the target object's bounding box, determines the angle of its surface relative to the normal vector at the center point, and selects the pre-defined grasp pose optimized for that surface angle.

Real-World Experiments

Tasks were tested across three pre-defined places — table, sofa, and refrigerator — in real household settings.

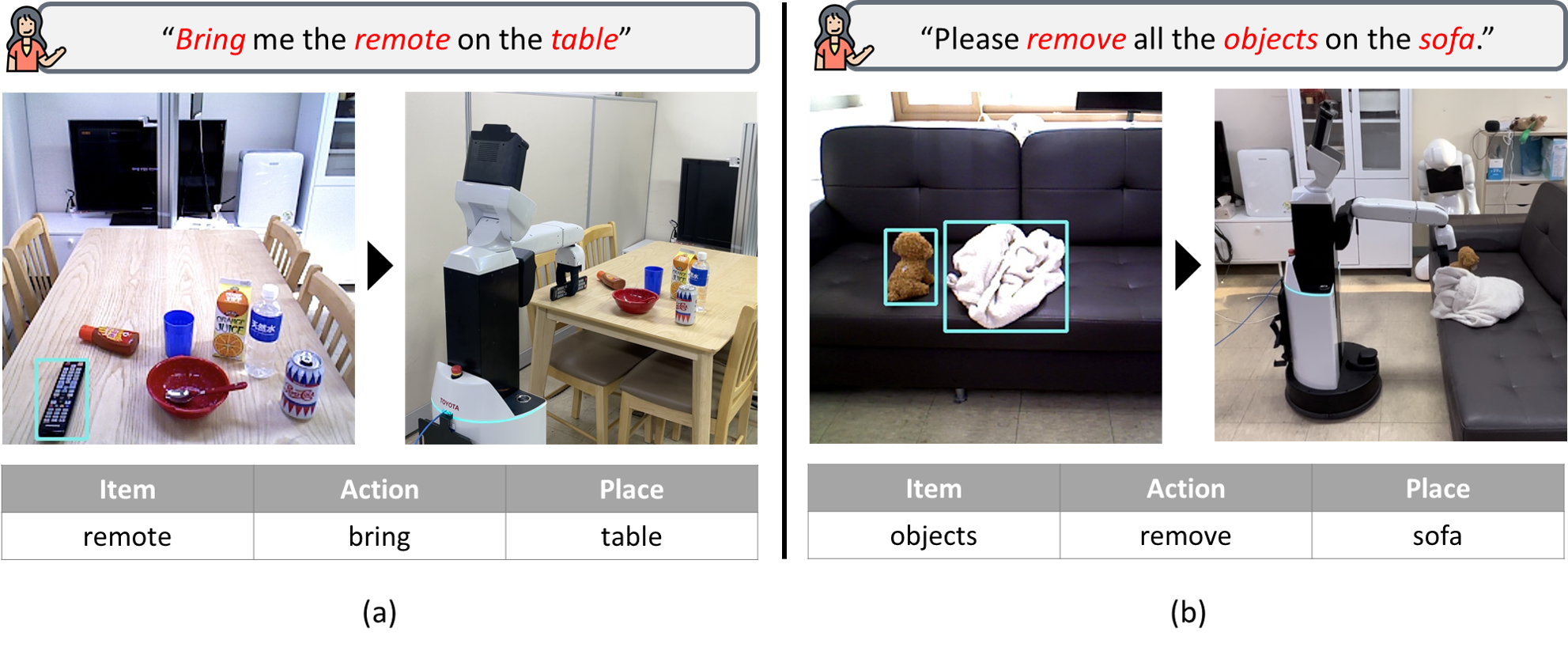

Example of the user-directive task: (a) 'Bring me the remote on the table' — the robot detects and retrieves the remote; (b) 'Please remove all the objects on the sofa' — the robot detects and removes multiple objects one by one.
Example of the user-directive task. The robot comprehends the NL instructions from the user and performs the user-given tasks: (a) retrieving the remote from the table, (b) removing all objects from the sofa.

In the robot-directive case, the robot inspects whether the user is eating via image captioning at breakfast time; if VQA finds no drinks on the table, it asks the user whether they need one, then executes the task the user confirms.

Example of the robot-directive task: the robot uses image captioning and VQA to determine the user is eating breakfast with no drinks on the table, asks if the user needs anything, and retrieves a coke from the refrigerator after the user confirms.
Example of the robot-directive task. The robot perceives the user status through image captioning and VQA, then receives tasks from the user by interacting.

Across both task types, the robot correctly parsed the instruction/perceived event, located the target via visual grounding, and completed the manipulation — demonstrating the system's potential for assisting people with limited mobility in everyday household tasks.
